◆It is the universal hand pallet truck, suitable for moving loads in all type of application
◆Exceptionally strong but lightweight steel construction, with welded joints and reinforced fork tips for maximum durability in the toughest of applications.
◆Along lift is assured through built in serviceability, aminimum of tem grease nipples are fitted to every truck to allow lubrication of moving parts.
◆Bogie wheels available for uneven floors and the handling of heavy loads.
◆Excellent turning angle of 180 degrees facilities.
◆Options of wheels: ensure every truck is suitable for its working environment0nylon, polyurethane, or rubber wheel may are all available.

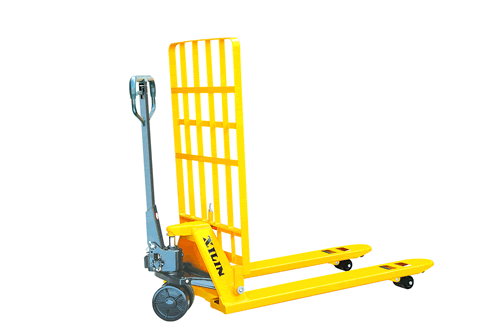

- 护栏手动液压搬运车
- 货叉根部设有档货架，防止货物滑移，起到保护操作者和货物的作用。
- 尤其适用于轻质的货物，必要时可用绳子将货物与档货架固定在一起。
- 以性能可靠的普通搬运车为基础，档货架可折叠，安全可靠。
|
特征 |
1.2 |
型号 |
|
BFR |
|
1.5 |
额定载荷 |
Q(kg) |
2500 |
|
|
重量 |
2.1 |
自重 |
kg |
95-105 |
|
车轮 |
3.2 |
轮子尺寸，前轮 |
mm |
200/190 |
|
3.3 |
轮子尺寸，后轮 |
mm |
85/75 |
|
|
尺寸 |
4.4 |
起升高度 |
h3(mm) |
115 |
|
4.9 |
操作手柄在驱动位置的最小/最大高度 |
h14(mm) |
1224/1214 |
|
|
4.15 |
降低时高度 |
h13(mm) |
85/75 |
|
|
4.19 |
总体长度 |
l1(mm) |
1533/1603 |
|
|
4.22 |
货叉尺寸 |
s/e/l |
53/160/1150(1220) |
|
|
4.25 |
货叉外宽 |
b5(mm) |
520/550/685 |
|
|
4.32 |
轴距中心离地间隙 |
m2(mm) |
40/30 |
|
|
4.33 |
通道宽度，托盘1000×1200(1200跨货叉放置) |
Ast(mm) |
1733/1803 |
|
|
4.34 |
通道宽度，托盘800×1200(1200沿货叉放置) |
Ast(mm) |
1783/1803 |
|
|
4.35 |
转弯半径 |
Wa(mm) |
1266/1336 |
