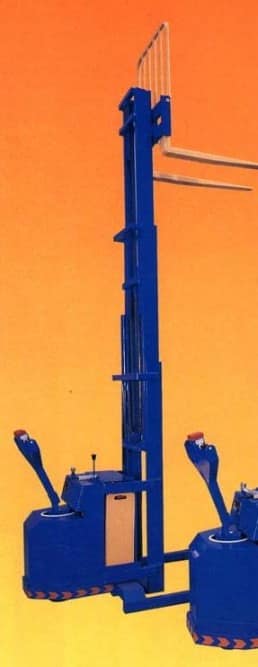

品牌：美国蓝巨叉车(BLUE GIANT)
|
Mast type(标准门架) |
3 stage(三级门架) |
|
Capacity A(额定载荷 A) |
4000 lb (1,814.37 kg) |
|
Load Centre (中心) A(载荷中心A) |
610 mm (24.02 in) |
|
Operator position(操作员座位方位) |
Walkie(步行式) |
|
Controls (操控位置) |
End |
|
Lift speed, with load(提升速度,满载) |
402 mm / sec. (15.83 in/sec) |
|
Lift speed, no load(提升速度,空载) |
600 mm / sec. (23.62 in/sec) |
|
Travel speed forward, with load(行驶速度,满载) |
3.9 kph (2.42 mph) |
|
Travel speed forward, no load(行驶速度,空载) |
5.8 |
|
Electric system(电动系统) |
Battery(电池) |
|
Battery(电池) |
Lead Acid Traction |
|
Voltage(电压) |
12V(NAW30)-24V |
|
Max. lift height(最大提升高度) |
3610 mm (142.13 in) |
|
Lowered height(缩回高度) |
76 mm (2.99 in) |
|
Machine width(车体宽度) |
965 mm (37.99 in) |
|
Machine wheel base(轴距) |
1372 mm (54.02 in) |
|
Tyres, type(轮胎类型) |
Cushion(实心轮胎) Polyurethane |
|
Tyre size(轮胎尺寸), front(前轮尺寸) |
4×3 |
|
Tyre size(轮胎尺寸), rear(后轮尺寸) |
10×3 |
